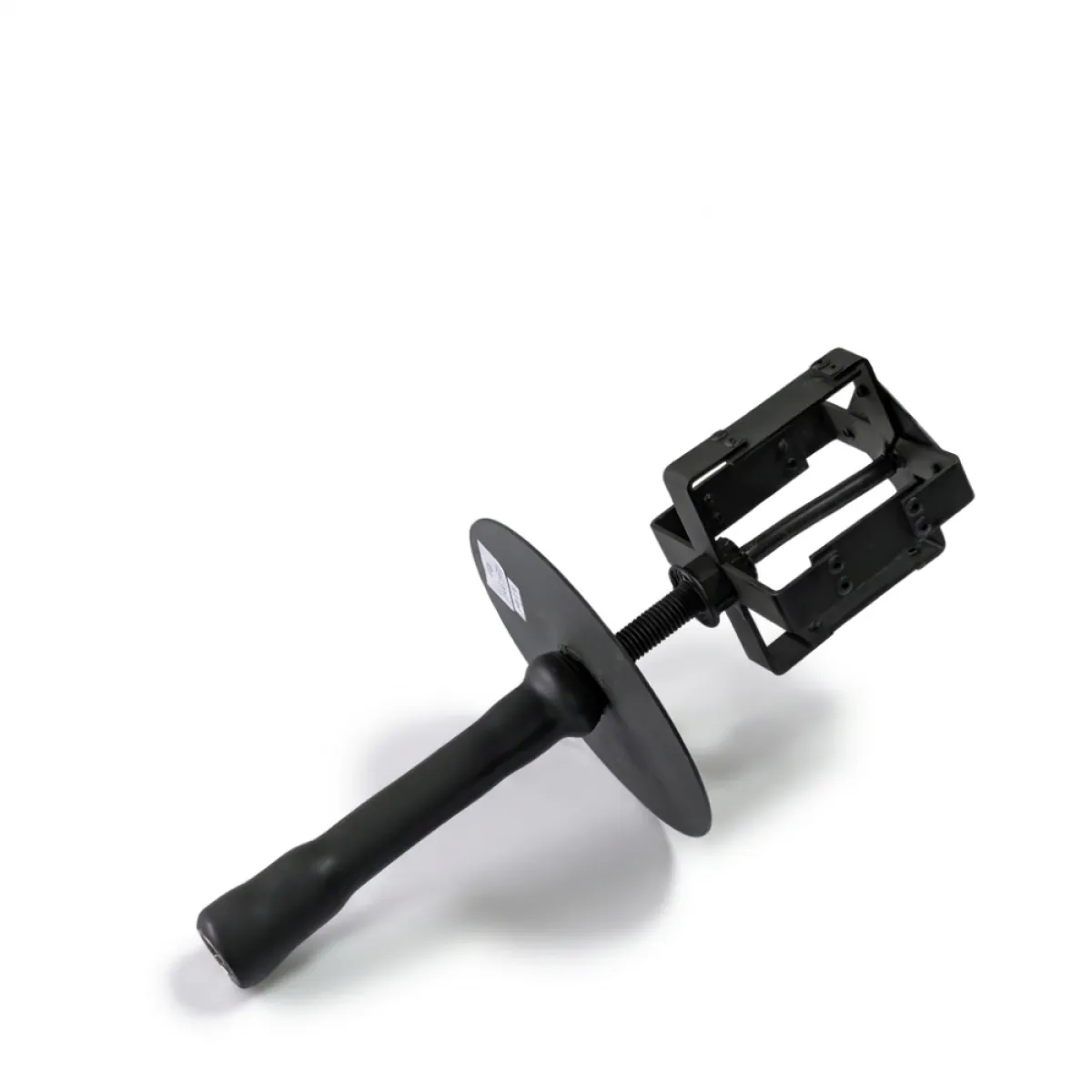

Quadrifilar Moxon antenna 1478–1692 MHz

Quadrifilar Moxon · 1478–1692 MHz

Passive RF antenna, custom manufactured, no active electronics. Circular polarization, omnidirectional, 1478–1692 MHz; any range can be retuned on request.

Used for
  • Telecommunication and point-to-multipoint data links
  • SDR receivers and spectrum monitoring
  • Satellite reception: LEO, weather and amateur satellites
  • Telemetry and remote sensing
  • IoT gateways and sensor networks (range-dependent)
  • Test benches, R&D and education
  • Reference antenna for lab measurements
polarization circularpattern omni VSWR 1.0–1.3 max input 200 W
SDR receiveSatellite receptionTelemetry linkTest bench
Enclosure
Bare version: lighter and cheaper, for indoor or enclosed mounting.
Connector
Quantity · 1–10
1
Need more than 10? Request a quote
43 $
excl. import VAT and duties · bare
Ships byTue 6 Oct
Shipping to United StatesNova Post 55 $TBD
Total incl. shipping98 $
Buy now
Measured on a VNA · guaranteed to match its specification · 14-day returns
PayPalVisaMastercardInvoice / SEPAUSDT
Import VAT, duties and customs fees are paid by the recipient on delivery · change country
VSWR · 1478–1692 MHzSample plot
3.02.01.0f₁centerf₂VSWR 1.5
Illustrative sample. Your unit ships with its own VNA measurement report (PDF). Real plot appears here once uploaded.

Specifications

Frequency range1478–1692 MHz
Retuningon request
Polarizationcircular
Patternomnidirectional
VSWR1.0–1.3
GainTBD
BandwidthTBD
ConnectorN / SMA
EnclosureBare / Radome
Max input power200 W
DimensionsTBD
WeightTBD
Lead time1–3 days
Measurement reportPDF with your unit's measurement. TBD
What's in the boxAntenna · VNA measurement report · TBD
Lead time & returnsShips in 1–3 days. 14-day return if unused. Details
